Description
Bevel Gear Including Of Straight Bevel Gears Spiral Bevel Gear Arc Bevel Gears
Straight Bevel Gears Are Widely Used In Mining Machinery, Such As Cone Crusher, The Cycle Hydraulic Crusher And The Need To Cross Axis Drive.

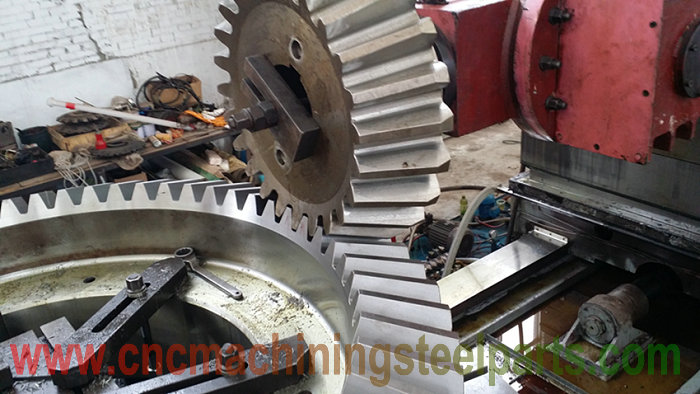

The Machine Tool Adopts The Shaping Method Of Double Side Machining Straight Bevel Gear, Because Of The Large Number Of The Large Spur Bevel Gear, The Tooth Shape Error Caused By The Forming Method Is Negligible. On The Machine Tool, a Series Of Straight Tooth Bevel Gears With Large Diameter And Large Modulus Are Finished.
1, PXZ1400/1500 Machining Of Straight Bevel Gear Of Large Hydraulic Cycle Crusher。
2, The Export Of Russian Big Endian Modulus Of Straight Bevel Gear M=46，Z=88
Max Diameter 4000mm Supporting Bevel Gears In Machining

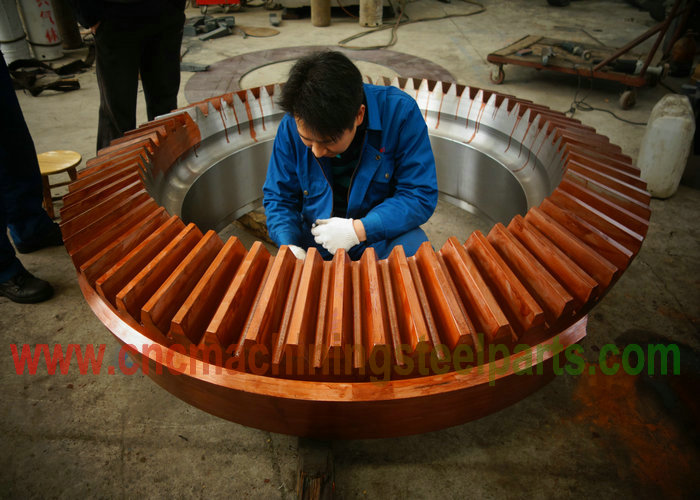

3, Rough Milling，After Heat Treatment. Diameter 4000mm，Spur Bevel Gear。
4, The Export Of Russian Big Endian Modulus Of Straight Bevel Gear M=30.5，Z=216
Max Diameter 6500mm Straight Bevel Gears On The Machine Tool, The Whole Rough Machining (Customer Inquiry Progress)
Materials We Can Choose As Below:
♠ High Quality Carbon Structural Steel: 20, 35, 45, 50, 55, 16Mn, 50Mn
♠ Carbon Tool Steel: T8 , T10
♠ Oil And Pressure Vessel Forging Steel : 16Mn, 20, 15CrMo, 20MnMo, 20MnMoNb, 35CrMo, 12Cr1MoV, 12Cr1MoV(P22), 14Cr1Mo, 20SiMn2MoV, SA-336F11CL3, SA-182F11CL3, SA-266/SA-266M, 25CrNiMo, 30CrMo, SA-336Cr.F22CL3, SA350-LF2, 21/4Cr1Mo
♠ Military Product Forgings: D406(30Si2MnCrMoVE)
♠ Power Station Forging: 26NiCrMoV14-5, 34CrMo1A
♠ Bearing Steel: GCr15, GCr15SiMn, G20Cr2Ni4A, GCr18Mo, 9Cr18Mo
♠ Alloy Structural Steel: 20~50SiMn, 40Cr, 42CrMo, 20~45CrMnMo, 45CrNiMnMo, 37SiMn2MoV, 40CrNiMoA, 40CrNi2MoA, 34CrNi3MoA, 34CrNiMo6, 30CrNiMo8, 20CrNi2MoA, 17CrNiMo6, 30Cr2Ni2Mo, 38CrMoA/A, 25Cr2Ni4MoV, 18Cr2Ni4W,
♠ Metallurgical Machinery Forgings Steel : 55Mn2, 60CrMnMo, 60CrNiMo, YB-15, 9Cr2Mo, 9Cr2MoV, 45Cr3NiMoV, 45Cr4NiMoV, 45Cr5NiMoV, 86CrMoV7, MC3, MC3A,
♠ Abrasive Steel : H13, B2, P20, 718, 5CrMnMo, 5CrNiMo.
