Description

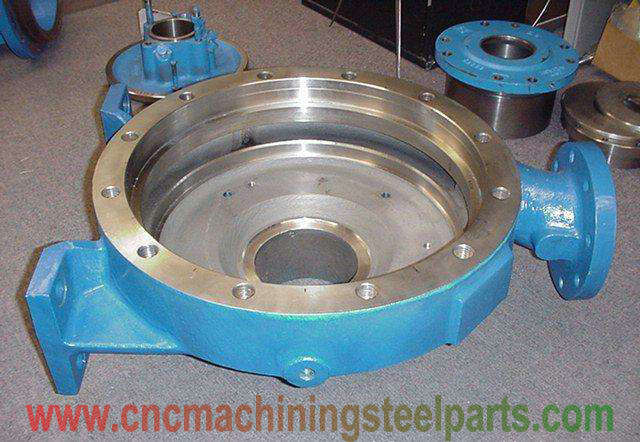

Pump Volute Body House Shell Case Pump Casing

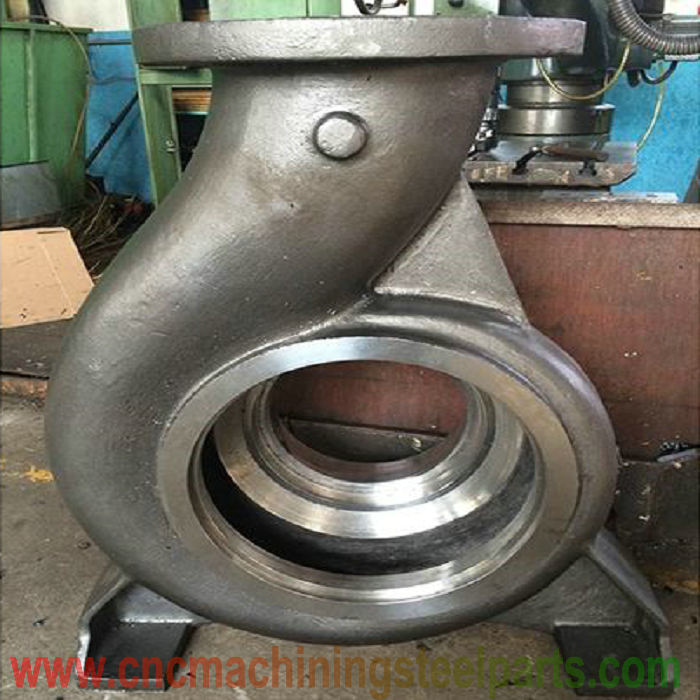

Pump Volute Also Named as Pump Body , Pump House , Pump Shell , Pump Case , Pump Casing . it normally be used as Pump main Parts, Protect all parts of pump. All of other pump parts working in the Pump Shell.
Pump Volute Is Mainly Used To Support The Normal Operation Of The Whole Pump. Whether The Performance Of The Pump Body Is Good Or Not Is Directly Related To The Service Life And Working Performance Of The Pump.
Excellent Quality Pump House Can Not Only Reduce Noise, But Also Greatly Extend The Service Life Of Other Components. Make All Internal Parts Of The Pump Shell Do Not Produce Friction, Reduce Vibration. High-Performance Pumps All Use The High-Precision Pump Body Independently Developed By Our Company.
Pump Body Also Belongs To Our Company’s CNC Machining Steel Parts.
In Order To Get Better Performance, The Pump Body Developed By Our Company Usually Does Not Use Welding Technology, But Uses Fine Casting Technology. Only a Small Part Of The Welded Parts Are Used To Improve The Stability Of The Working Performance Of The Pump Case.
Casting Iron And Steel Pump Volute Technology Can Make The Shape And Internal Structure Of The Pump Body More Arbitrary. The Pump Volute Structure Can Be Cast According To The Actual Needs.
Because Of The Main Supporting And Fixing Function Of The Pump Casing Structure, There Are No Load-Bearing And Wear Surfaces On Each Contact Surface, So Forging Technology Is Seldom Used In The Design Of The Pump Body. Thus, The Production Cost Of The Pump Body Is Greatly Reduced.
Our Company Has Rich Experience In CNC Machining Cast Steel Pump Volute:
Centrifugal Pump Volute
Gear Pump Volute
Rotor Pump Volute
Screw Pump Volute
Diaphragm Pump Volute
Materials We Can Choose As Below:
♠ High Quality Carbon Structural Steel: 20, 35, 45, 50, 55, 16Mn, 50Mn
♠ Carbon Tool Steel: T8 , T10
♠ Oil And Pressure Vessel Forging Steel : 16Mn, 20, 15CrMo, 20MnMo, 20MnMoNb, 35CrMo, 12Cr1MoV, 12Cr1MoV(P22), 14Cr1Mo, 20SiMn2MoV, SA-336F11CL3, SA-182F11CL3, SA-266/SA-266M, 25CrNiMo, 30CrMo, SA-336Cr.F22CL3, SA350-LF2, 21/4Cr1Mo
♠ Military Product Forgings: D406(30Si2MnCrMoVE)
♠ Power Station Forging: 26NiCrMoV14-5, 34CrMo1A
♠ Bearing Steel: GCr15, GCr15SiMn, G20Cr2Ni4A, GCr18Mo, 9Cr18Mo
♠ Alloy Structural Steel: 20~50SiMn, 40Cr, 42CrMo, 20~45CrMnMo, 45CrNiMnMo, 37SiMn2MoV, 40CrNiMoA, 40CrNi2MoA, 34CrNi3MoA, 34CrNiMo6, 30CrNiMo8, 20CrNi2MoA, 17CrNiMo6, 30Cr2Ni2Mo, 38CrMoA/A, 25Cr2Ni4MoV, 18Cr2Ni4W,
♠ Metallurgical Machinery Forgings Steel : 55Mn2, 60CrMnMo, 60CrNiMo, YB-15, 9Cr2Mo, 9Cr2MoV, 45Cr3NiMoV, 45Cr4NiMoV, 45Cr5NiMoV, 86CrMoV7, MC3, MC3A,
♠ Abrasive Steel : H13, B2, P20, 718, 5CrMnMo, 5CrNiMo.
